Waterproof Micro Switch Wiring Automobile Part Waterproof IP67 12/24VDC
Designed For Waterproof IP67,Small Compact Size,Long Life and High Reliability,Slide Structure,Complete Variety of Wiring Terminal

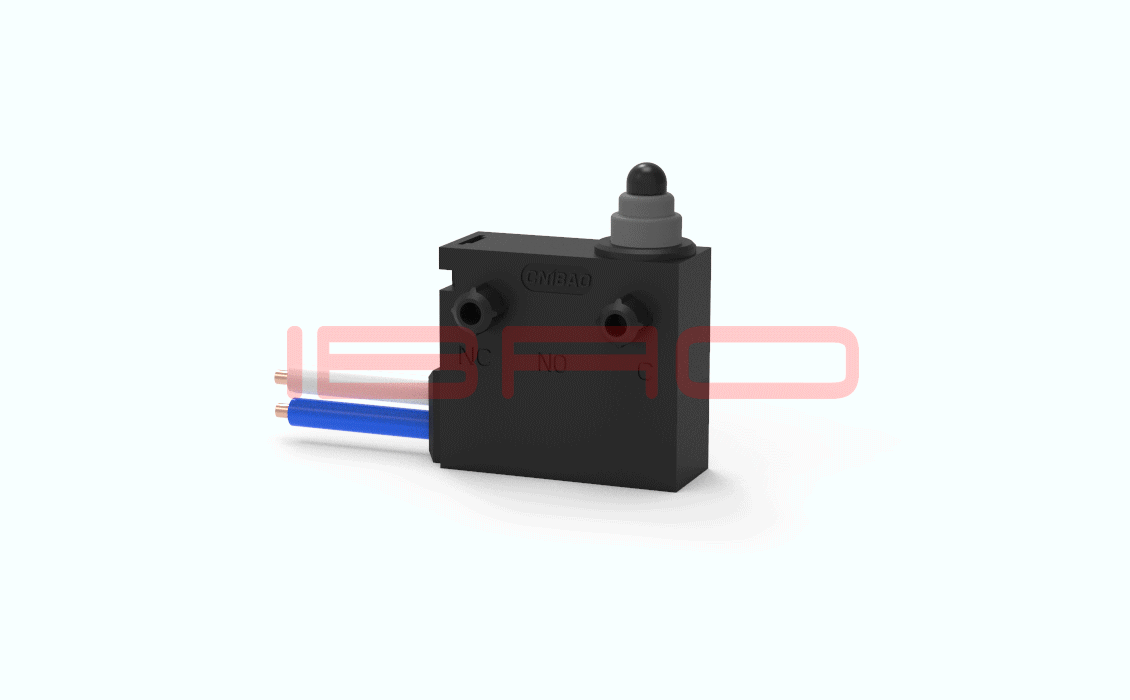

3D picture
Product Image
Feature
Application
Car
Air-Conditioner
Communication
Sharing Device
Toys
Parameters:
| Rating | 0.1A 12VDC | |
| Contact Resistance | 500mΩ MAX without wire | |
| Operating Temperature | 40T85 | |
| Operating Force | 40±20gf；60±30gf；100±40gf | |
| Hole for Mounting |  |  |
| service life | Electrical | ≥300,000 Cycles |
| Mechanical | ≥300,000 Cycles | |

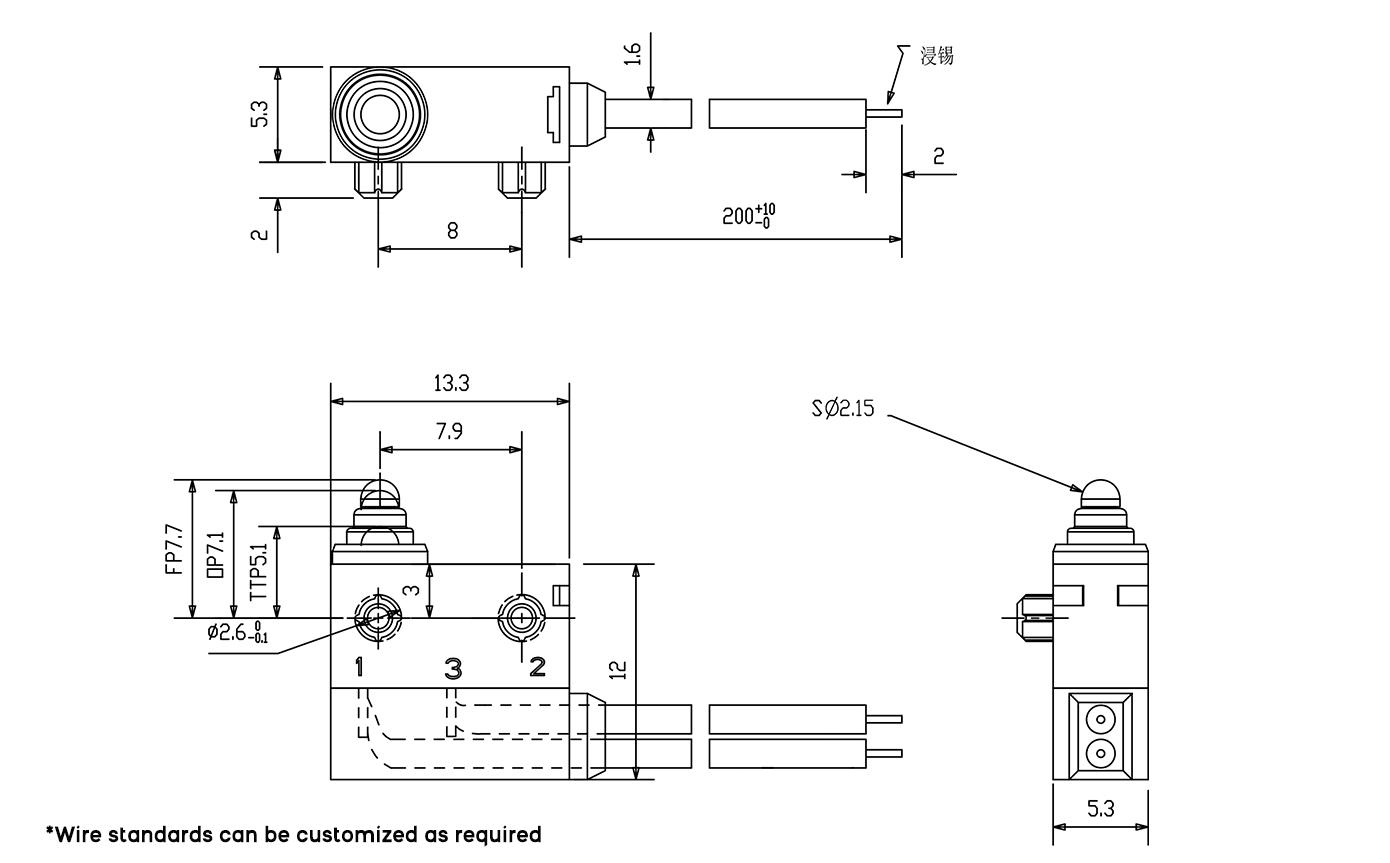

Outline Drawing
Parameters
Ordering Instruction
