Micro Snap Action Switch 12V DC Waterproof Miniature
Designed For Waterproof IP67,Small Compact Size,Long Life and High Reliability,Slide Structure,Complete Variety of Wiring Terminal
3D picture
Product Image
Feature
Application
Car
Air-Conditioner
Communication
Sharing Device
Toys
Parameters:
| Rating | 0.1A 12VDC | |
| Contact Resistance | 500mΩ MAX without wire | |
| Operating Temperature | 40T85 | |
| Operating Force | 40±20gf；60±30gf；100±40gf | |
| Hole for Mounting |  |  |
| service life | Electrical | ≥300,000 Cycles |
| Mechanical | ≥300,000 Cycles | |

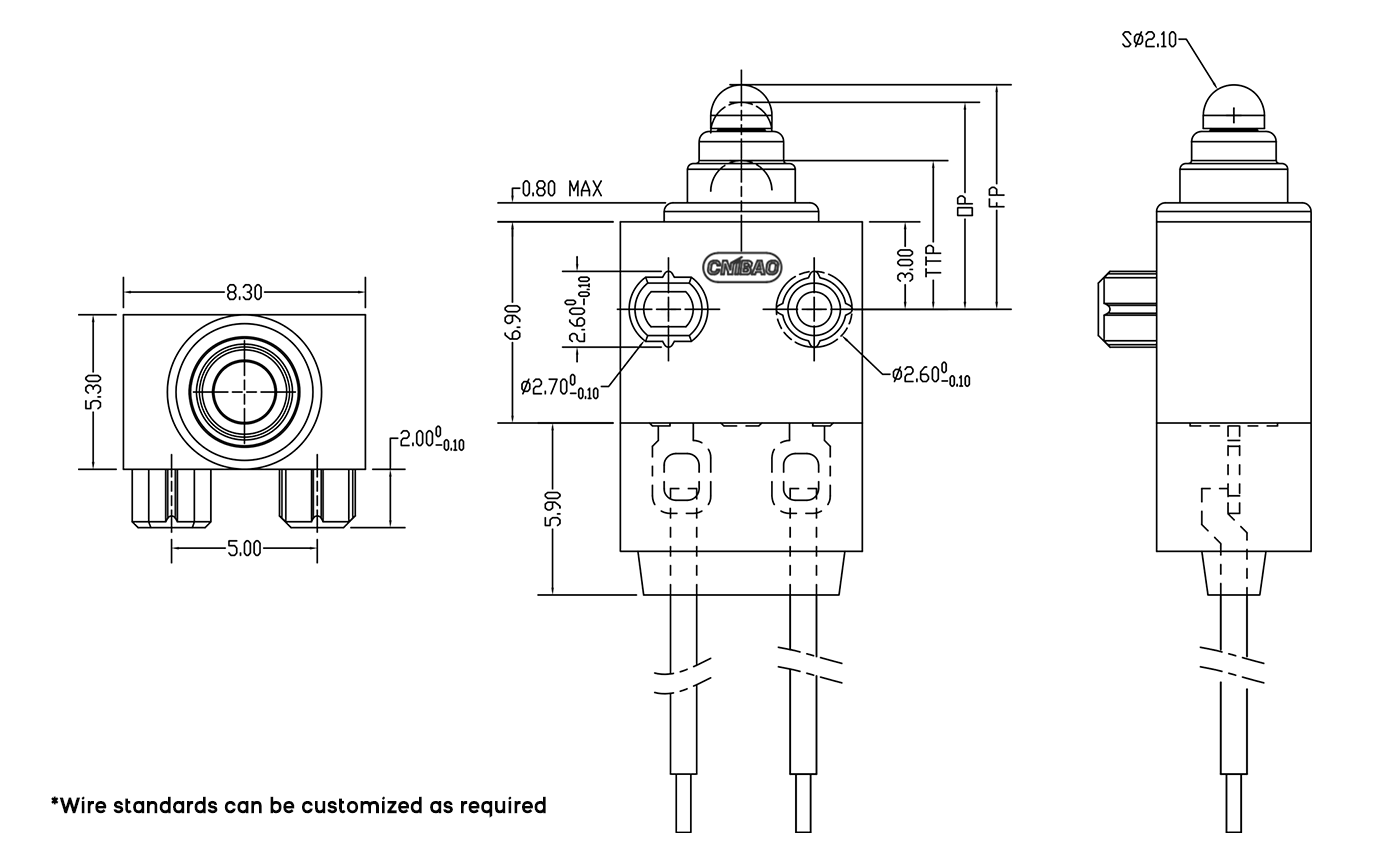

Outline Drawing
Parameters
Ordering Instruction
