MAF Series Waterproof Micro Switch Roller Lever 125/250VAC SPDT Snap Switch
Designed For Waterproof IP67,Small Compact Size,Switch Safety Approvals,Long Life and High Reliability,Offer Various Levers,Complete Variety of Wiring Terminal,Various Dimensions Satisfy Different Installation Requirements

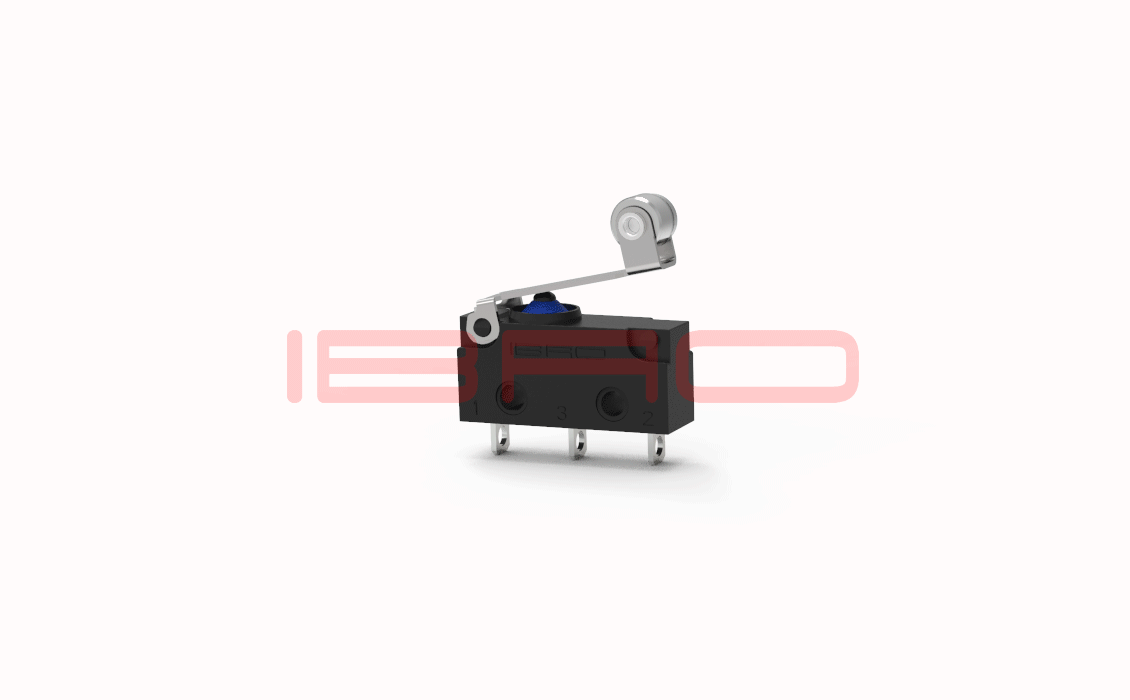

3D picture

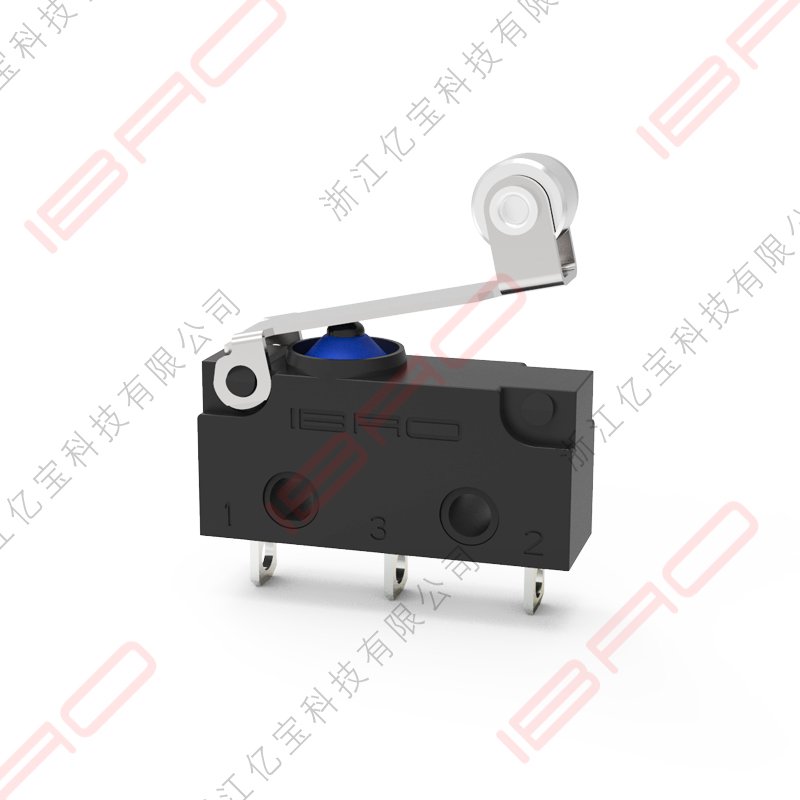

Product Image
Feature
Application
Car
Air-Conditioner
Communication
Home Appliance
Motor Control
Sharing Device
Toys
Charging Station
Parameters:
| Rating | 10(2)A 125/250VAC; 8(3)A 125/250VAC; 5(3)A 125/250VAC; 1/4HP 125VAC; 10A 36VDC | |
| Contact Resistance | 100mΩ MAX Without wire | |
| Operating Temperature | 40T125 | |
| Operating Force | 150±50gf 250±80gf | |
| Hole for Mounting |  |  |
| service life | Electrical | ≥10，000 Cycles; ≥50,000 Cycle |
| Mechanical | ≥300,000 Cycles | |

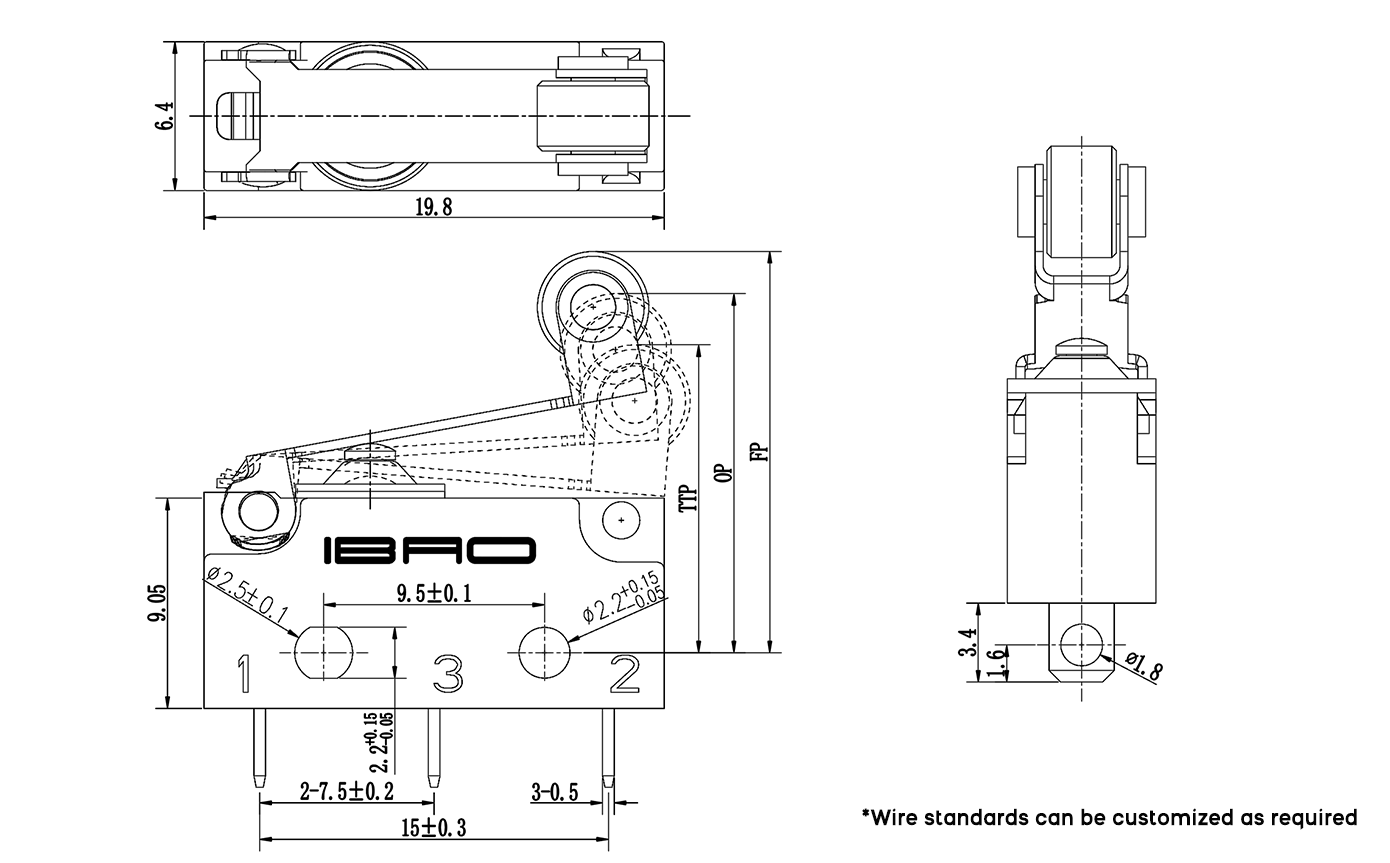

Outline Drawing
Parameters
Ordering Instruction
