MAE Series Water Proof Micro Switch SPDT 0.1A 12~24VDC 100,000 cycles
Designed For Waterproof IP67,
Small Compact Size,
Switch Safety Approvals,
Long Life and High Reliability,
Offer Various Levers,
Complete Variety of Wiring Terminal,
Various Dimensions Satisfy Different Installation Requirements
3D picture
Product Image
Feature
Application
Car
Air-Conditioner
Communication
Home Appliance
Motor Control
Sharing Device
Toys
Charging Station
Parameters:
| Rating | 0.1A 125/250VAC 1E5; 0.1A 48VDC 1E5; 3A 12VDC 1E4; | 3(1)A 125/250VAC 1E4; 3A 36VDC 1E4; 3A 12VDC 1E5; |
| Contact Resistance | 100mΩ MAX Without wire or resistance | |
| Operating Temperature | 40T85 | |
| Operating Force | 75gf MAX； 130gf MAX | |
| Hole of Mounting |  |  |
| Service Life | Electrical | ≥10,000 Cycles; ≥100,000 Cycles |
| Mechanical | ≥1,000,000 Cycles | |

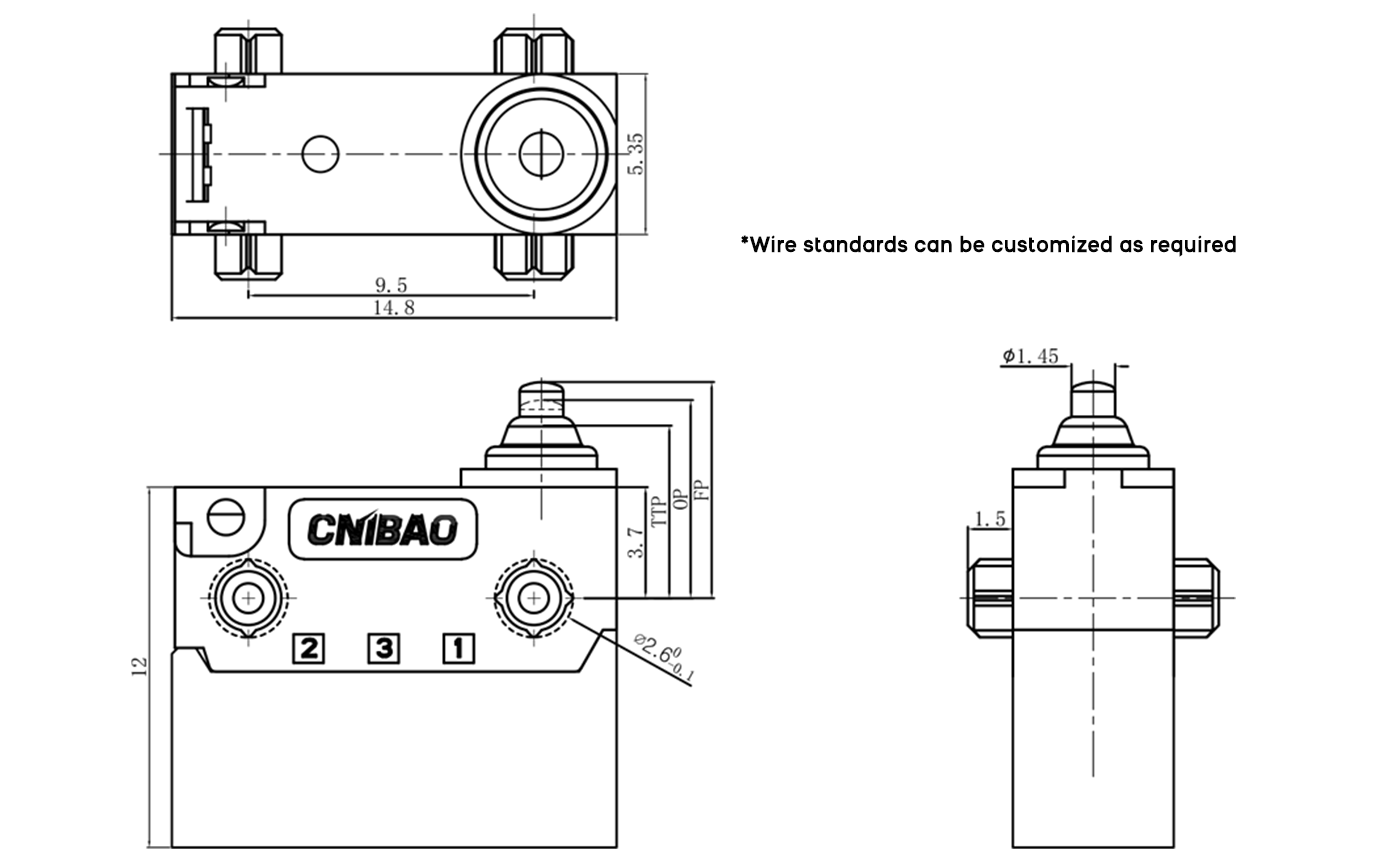

Outline Drawing
Parameters
Ordering Instruction
