MAC Series Waterproof Micro Switch Long Straight Lever
Designed For Dustproof IP60,Small Compact Size,Switch Safety Approvals,Long Life and High Reliability,Offer Various Levers,Complete Variety of Wiring Terminal,Various Dimensions Satisfy Different Installation Requirements

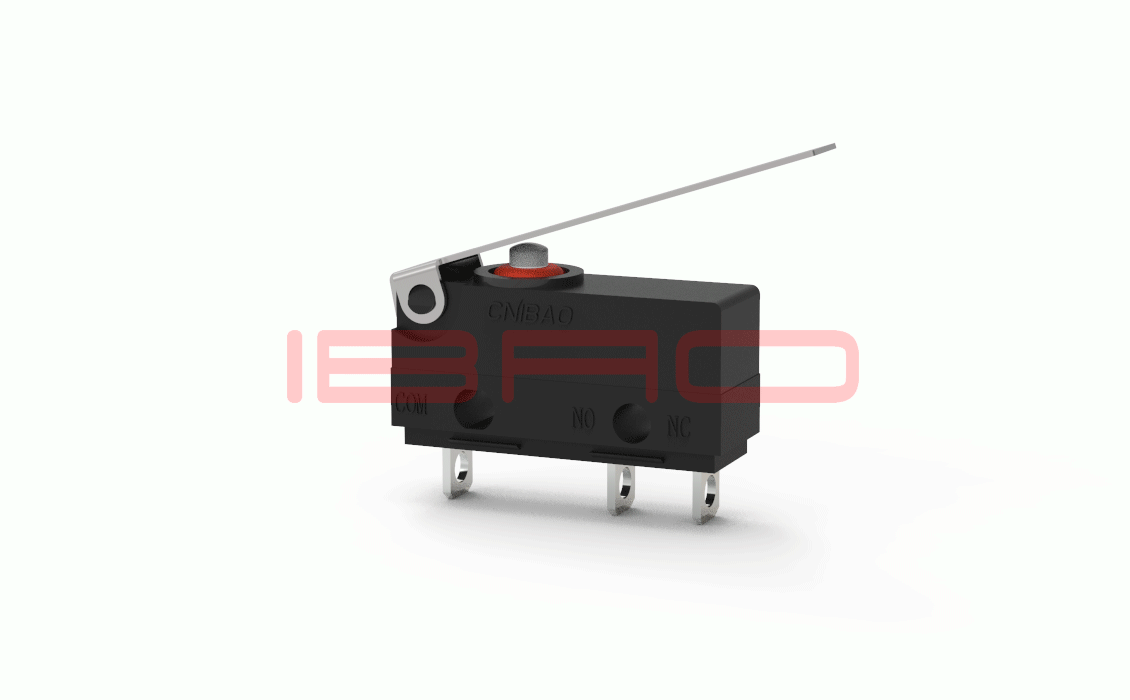

3D picture
Product Image
Feature
Application
Car
Communication
Home Appliance
Motor Control
Sharing Device
Charging Station
Parameters:
| Rating | 3(3)A 250VAC T125 5E4; 8(3)A 250VAC T125 1E4 | |
| Contact Resistance | ≥100mΩ(Without wire) | |
| Operating Temperature | 25T125 | |
| Operating Force | 130gf 200gf 300gf | |
| Hole For Mounting | Hole | |
| service life | Electrical | 10,000 & 50,000 Cycles |
| Mechanical | ≥100,000 Cycles | |

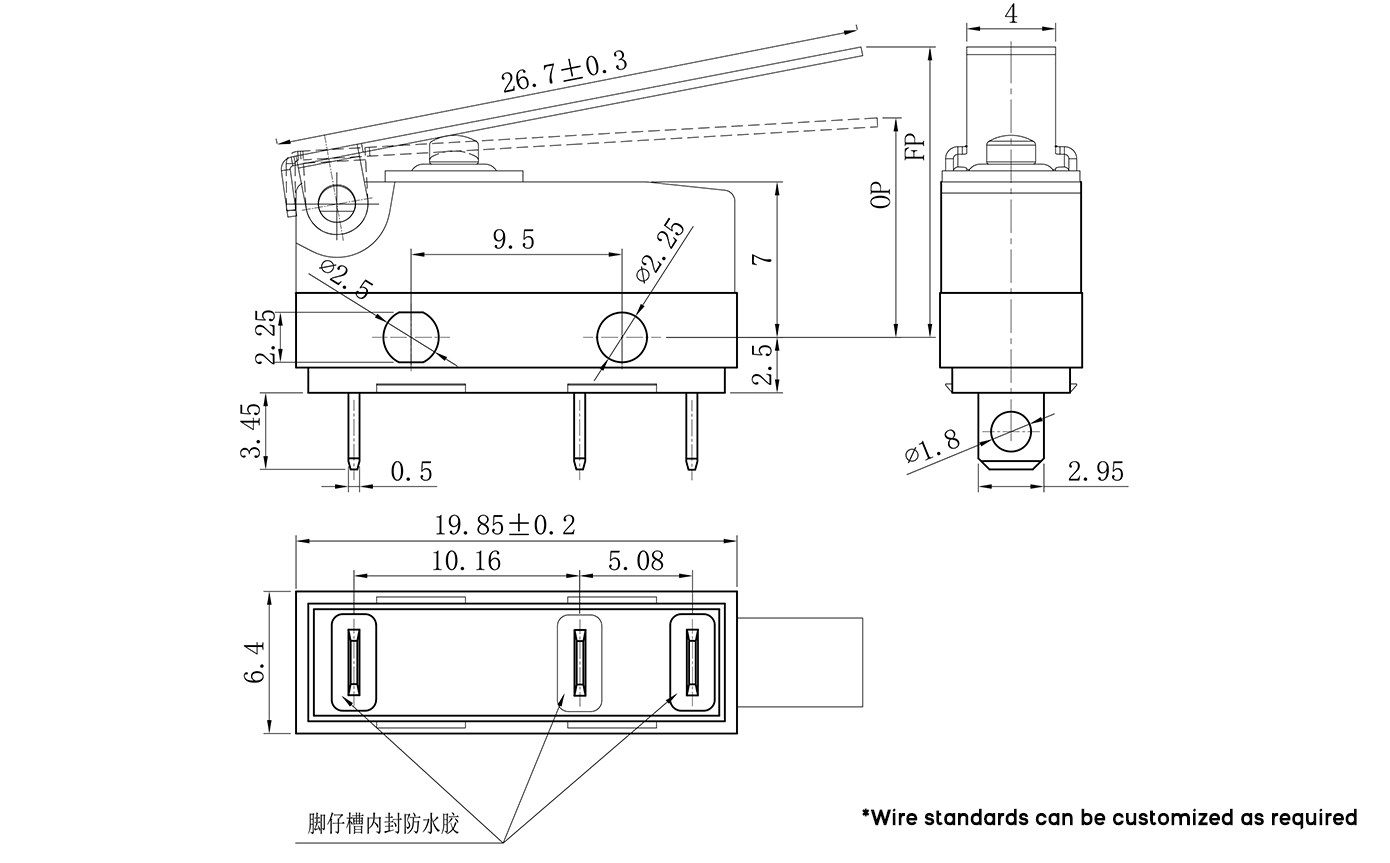

Outline Drawing
Parameters
Ordering Instruction
