RCE Series Rocker Switch with Waterproof Protective Cover KCD4
Designed For Waterproof IP65,Switch Safety Approvals,Long Life and High Reliability,Complete Variety of Wiring Terminal,Various Dimensions Satisfy Different Installation Requirements

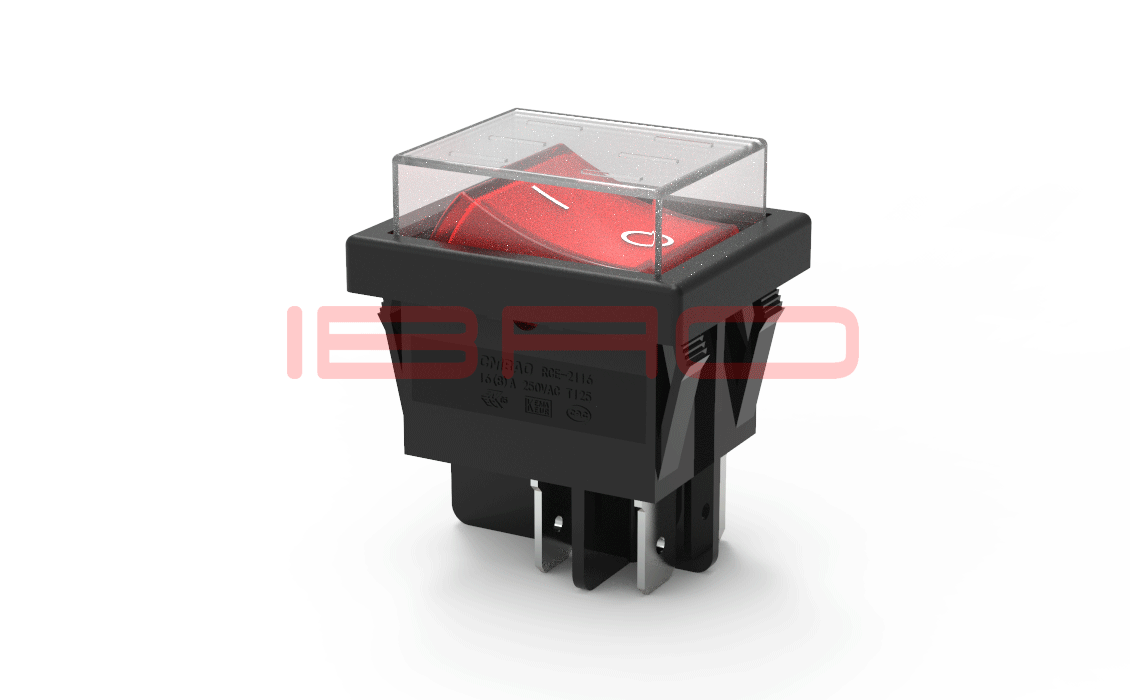

3D picture
Product Image
Feature
Application
Industrial Appliance
Home Appliance
Office Equipment
Medical Equipment
Automatic Equipments
Sharing Device
Parameters:
| Rating | 16(8)A 125/250VAC | |
| Contact Resistance | 100mΩ MAX | |
| Operating Temperature | T125 | |
| Operating Force | 400±200gf | |
| Knob Colour | Black; White; Red | |
| service life | Electrical | ≥10,000 Cycles |
| Mechanical | ≥100,000 Cycles | |

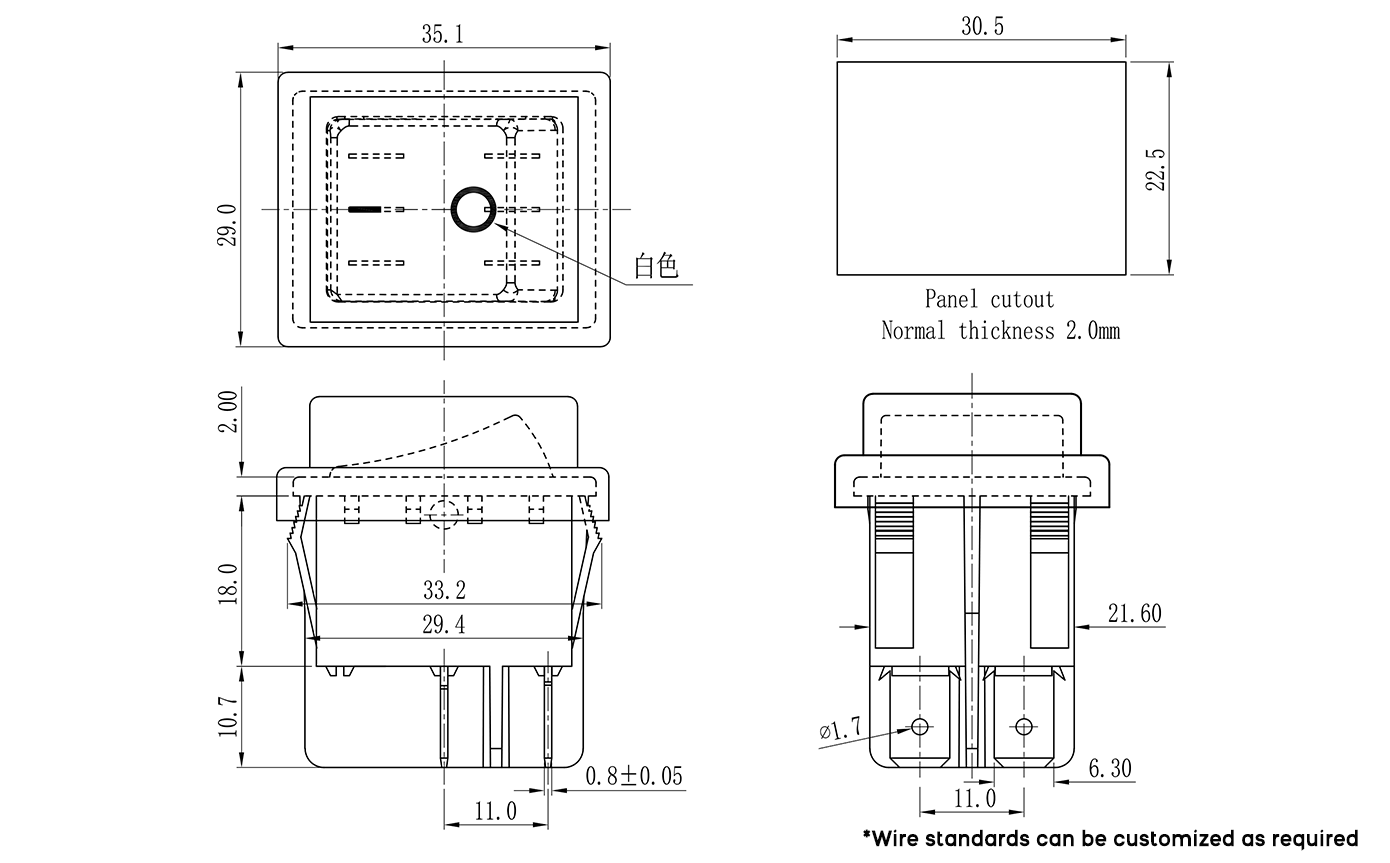

Outline Drawing
Parameters
Ordering Instruction
