RCA Series Rocker Switch 3 Way ON-OFF-ON
Switch Safety Approvals,Long Life and High Reliability,Complete Variety of Wiring Terminal,Various Dimensions Satisfy Different Installation Requirements
3D picture

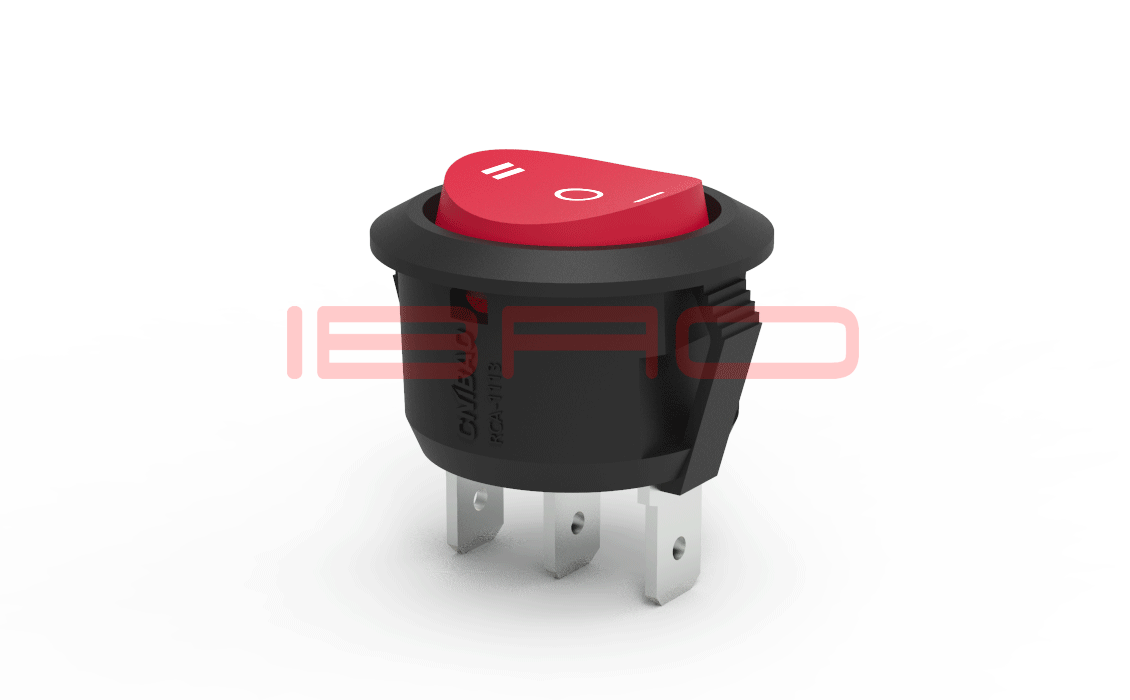

Product Image
Feature
Application
Home Appliance
Office Equipment
Medical Equipment
Automatic Equipments
Sharing Device
Parameters:
Most of the DIP switches are used in the program control panel to control the conduction and disconnection of the performance circuit of the components. Therefore, the DIP switch will also be called according to the industry sector: program switch, address switch, and the most familiar DIP switch.
| Rating | 13(4)A 250VAC； 16A 125VAC | |
| Contact Resistance | 100mΩ MAX | |
| Operating Temperature | T125 | |
| Operating Force | 400±200gf | |
| Knob Colour | Black、White^ Red、Blue、Green etc. | |
| service life | Electrical | ≥10,000 Cycles |
| Mechanical | ≥100,000 Cycles | |

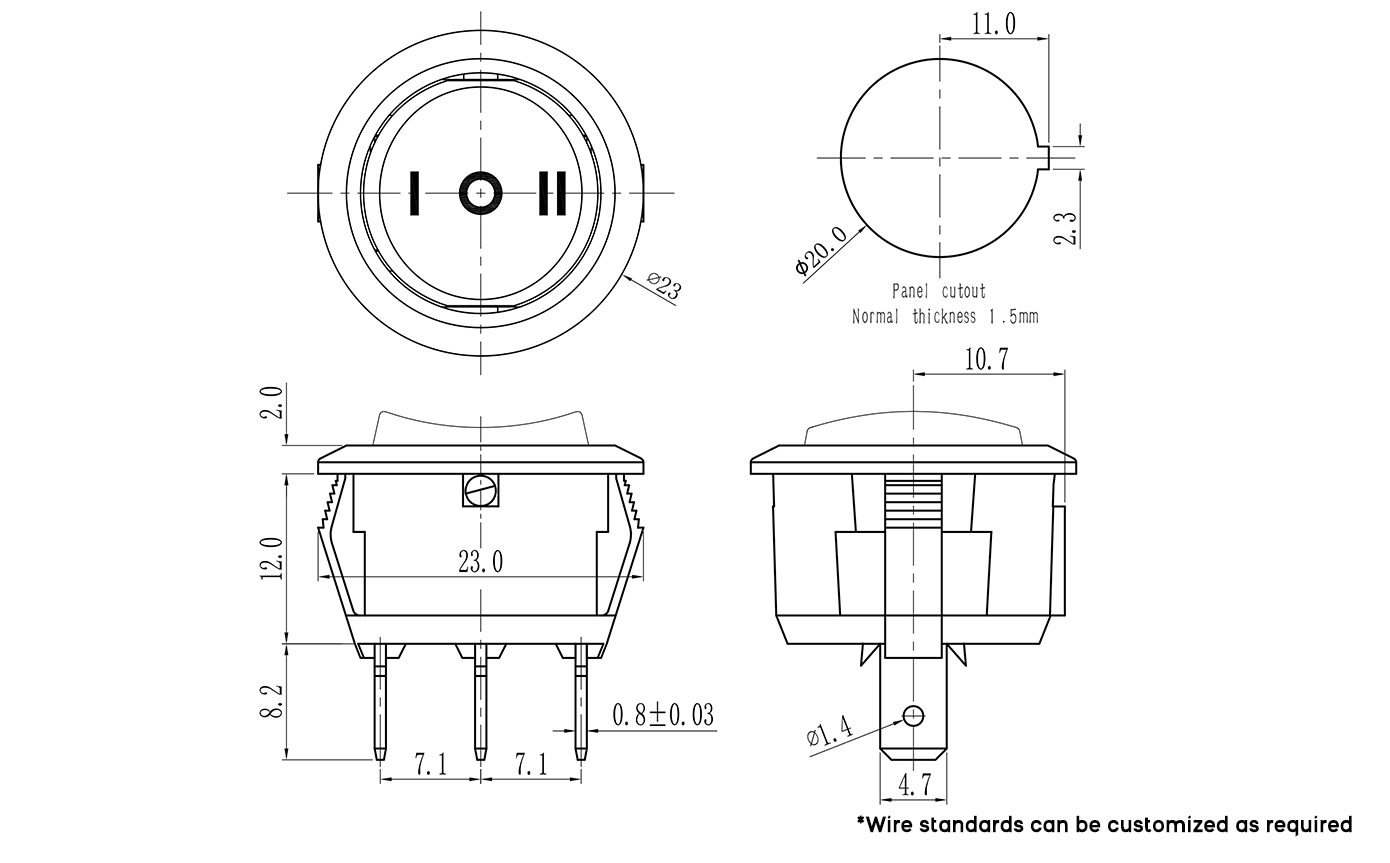

Outline Drawing
Parameters
Ordering Instruction
